Nuclear Fission

Topic 4 - Atomic Structure
Written by Atheridge Tuition


AQA-style Exam Question

Describe the process of nuclear fission.

[4 marks]

  • The uranium-235 nucleus absorbs a neutron, causing it to become unstable.

    (1 mark)

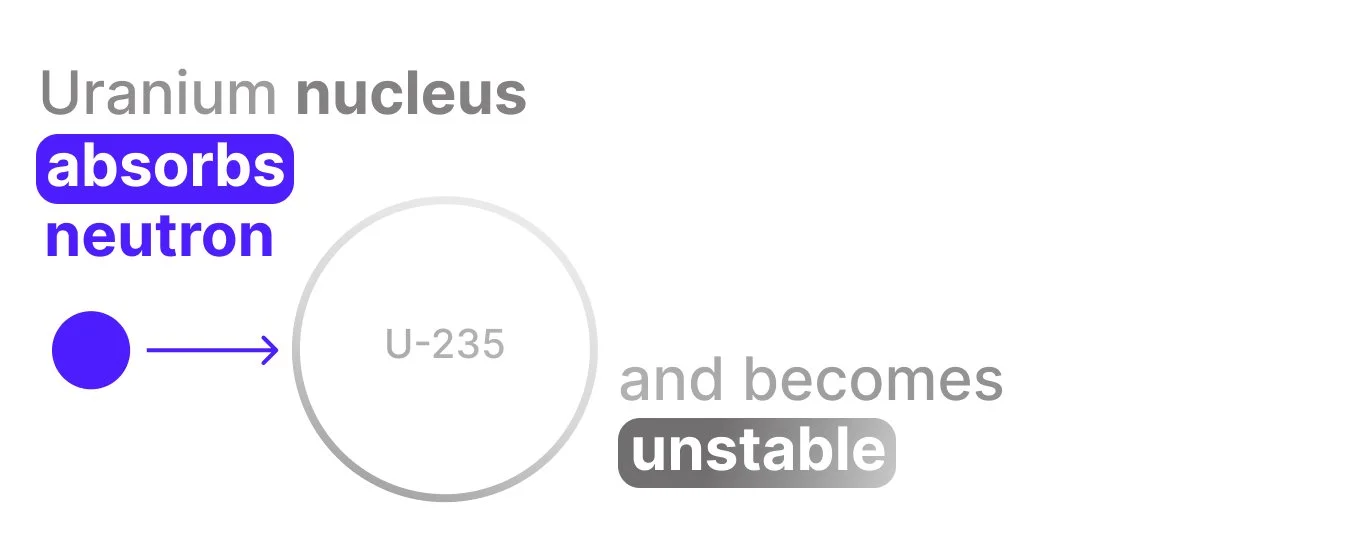

Uranium-235 nucleus absorbing a neutron and becoming unstable during nuclear fission.


  • The unstable nucleus splits into two smaller nuclei.

    (1 mark)

Unstable uranium-235 nucleus splitting into two smaller nuclei during nuclear fission.


  • Two or three neutrons and gamma rays are released.

    (2 marks)

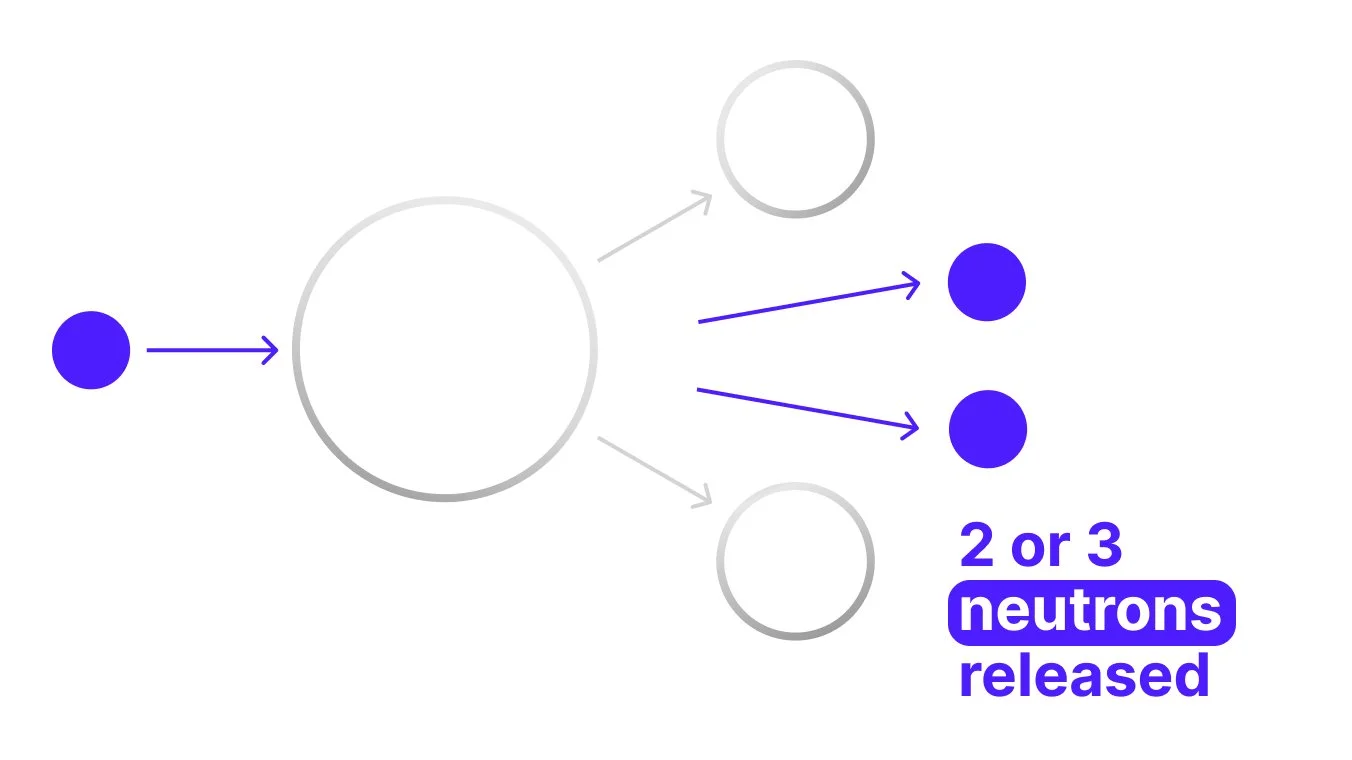

Nuclear fission diagram showing a uranium nucleus splitting and releasing two or three neutrons.

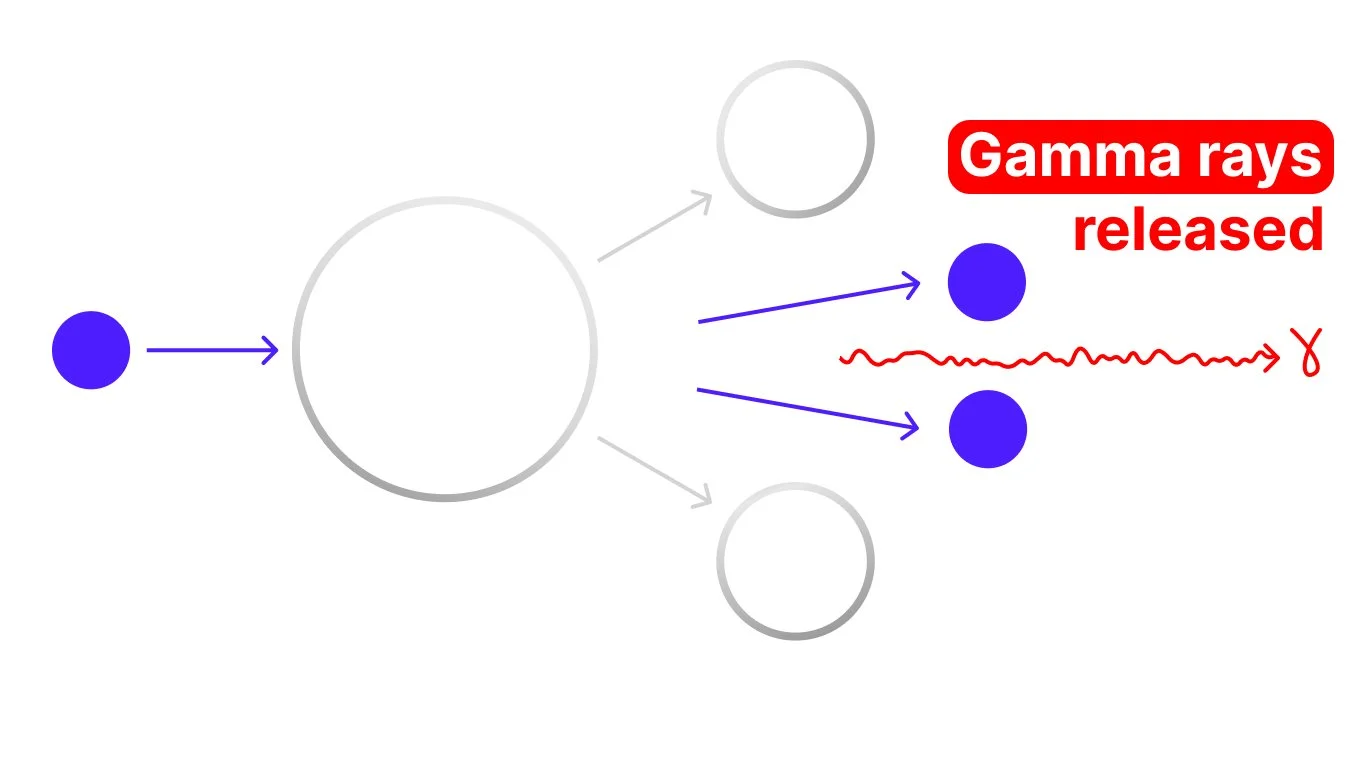

Nuclear fission diagram showing two smaller nuclei, neutrons and gamma rays released from a uranium nucleus.
